gepfeffert.com V1 (small deep version from 1061kg axle load, without camber dome bearing)
gepfeffert.com V1 (small deep version from 1061kg axle load, without camber dome bearing)
Gepfeffert V1 without adjustable camber dome bearings
The gepfeffert V1 without adjustable camber dome bearings is mounted with the standard support bearings. We refer to the gepfeffert chassis without camber dome bearings as the "small depth version".
Definition "small depth version":
We distinguish here coilovers of the brand gepfeffert.com made by KW, with or without adjustable camber dome bearings (model & platform dependent). The suspensions without camber dome bearings have up to 35mm more lowering, compared to a standard KW coilover suspension.
Example Golf 7 GTI:
- Series KW coilover suspension: adjustment range 20-45mm
- GEPFEFFERT KW coilover suspension: adjustment range 35-70mm
These suspensions were built specifically for our customers, who have put the focus on a maximum of 15-35mm more lowering compared to a series KW coilover suspension, without using a gepfeffert version with camber dome bearing (Uniballlager).
The chassis with adjustable camber dome bearings, on the other hand, have even greater "leeway" for even more lowering and even more upgrade options, in order to be able to tailor the vehicle even more individually to the requirements of the respective driver.
Example Golf 7 GTI:
- Series KW coilover suspension: adjustment range 20-45mm
- GEPFEFFERT KW "small depth version" without camber dome bearing: adjustment range 35-70mm
- GEPFEFFERT KW with adjustable camber dome bearings: adjustment range 45-95mm (upgrade possibilities with other spring systems up to 130mm possible)
Chassis of the brand gepfeffert KW "small depth version" (without camber dome bearing) can of course also be found here in the online store.
Balance of sportiness, comfort and safety.
The KW coilover suspension variant 1 "inox-line" is the ideal entry-level system for customers who want to determine a technically maximum possible or an individual lowering themselves. In elaborate driving tests, our experienced engineers have developed a setup that is suitable for the target group by determining an optimum balance of sportiness, comfort and safety and have implemented it directly in the series.

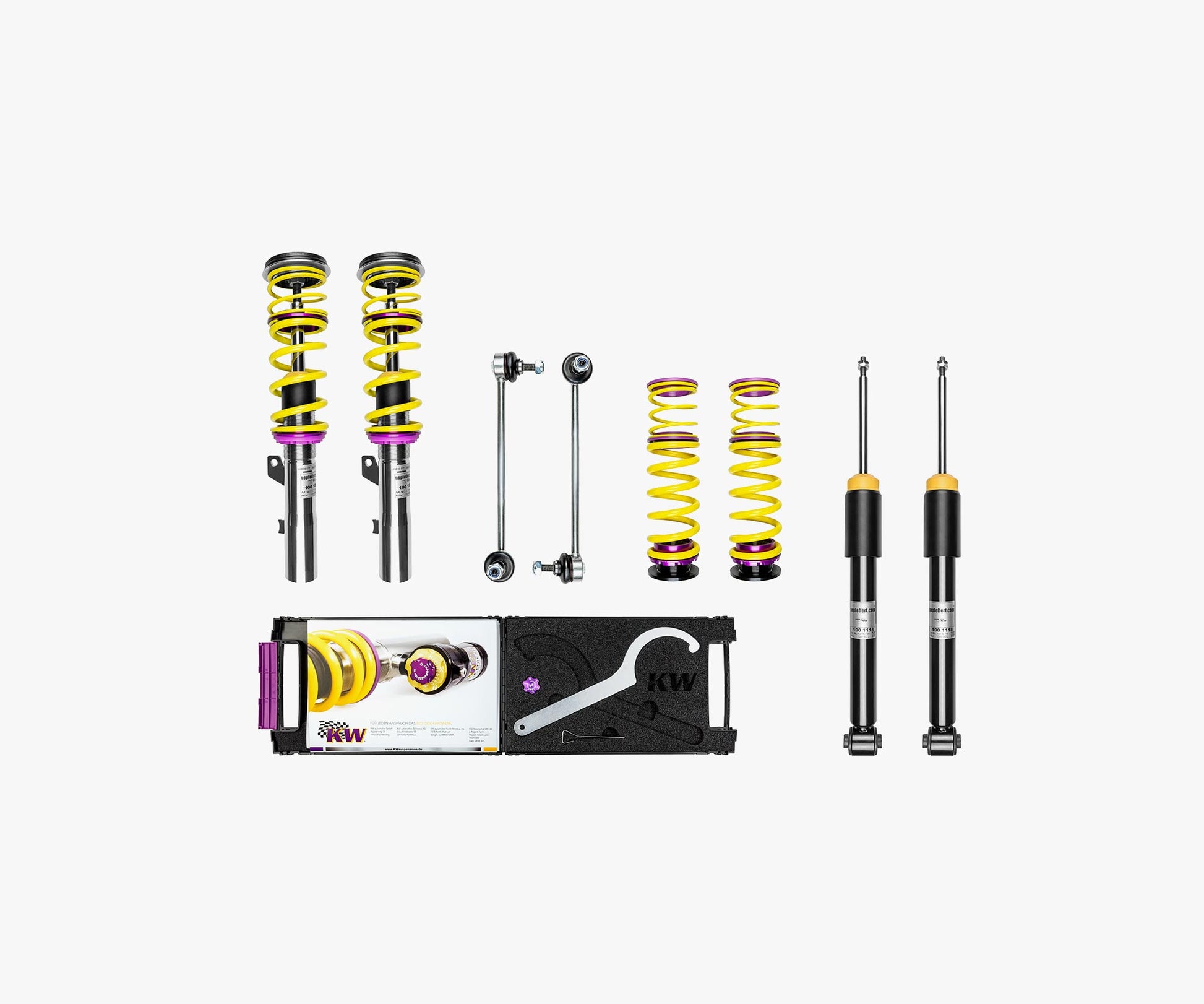

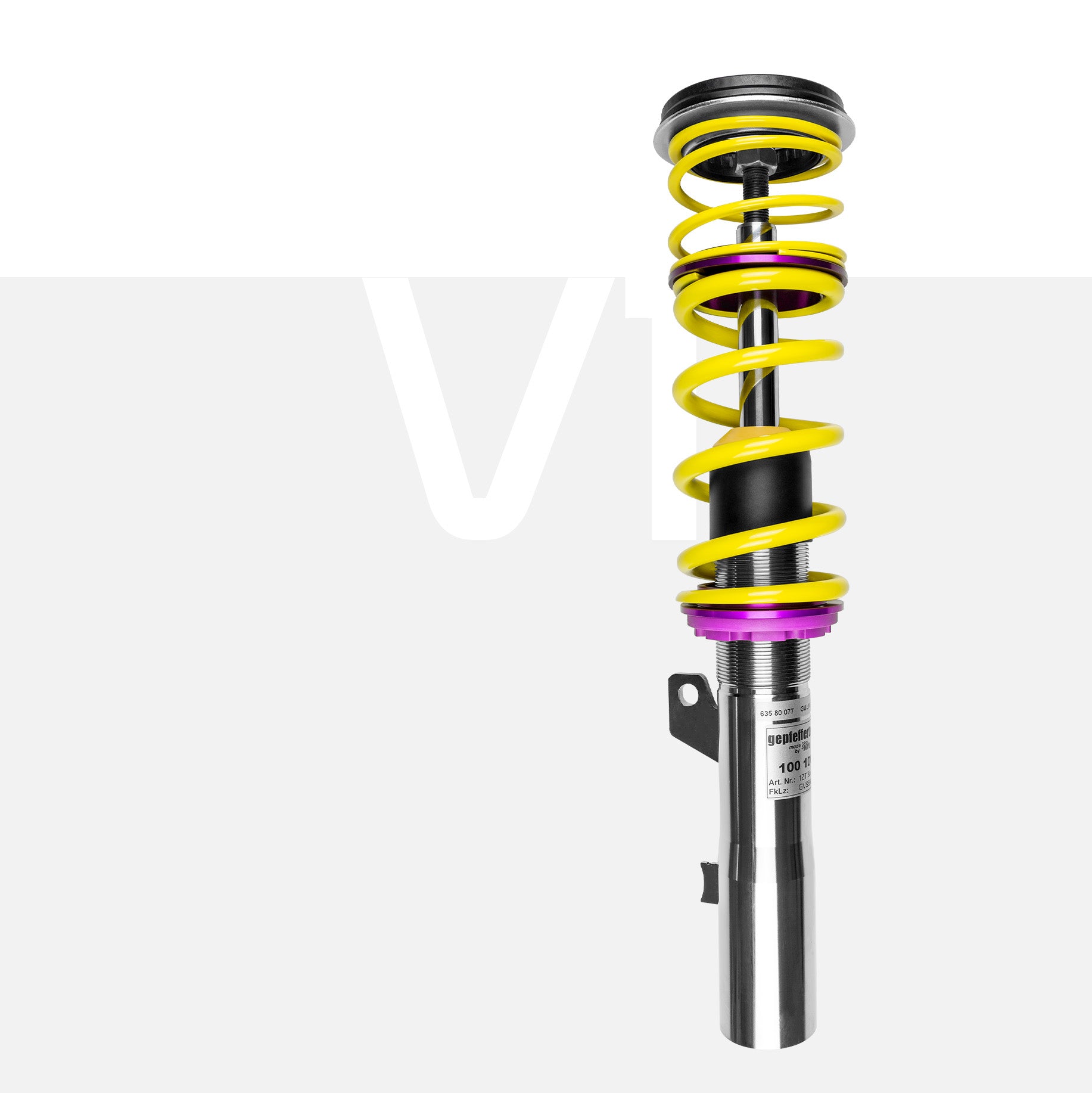

The gepfeffert.com® V1 coilover suspension made by KW
Variant 1 "inox-line" has a vehicle-specific, permanently configured damper setup with a sporty, harmonious set-up so that you experience an optimum balance of sportiness and everyday usability when driving. Even with a full payload and maximum axle loads, the dampers always operate with a sporty characteristic curve.
The KW variant 1 allows maximum or individual lowering in the tested adjustment range. Thanks to the dirt-resistant trapezoidal thread and the polyamide threaded ring, the stepless lowering can be varied quickly and easily even after years.
Technical information:
- Optimally adjusted in advance |
- sporty and harmonious damping technology |
- Stainless steel technology "inox-line |
- individually height adjustable |
- tested adjustment range |
- ready-to-install complete solution |
- High quality components for long service life |
- complete documentation for easy handling |
Note: The picture may differ from the delivered product
